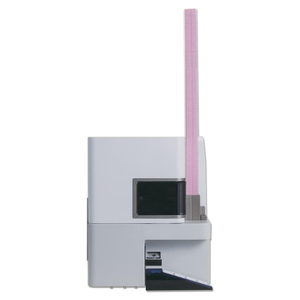

Slide Laser Printer
Advantages
◆ CLEAR PRINT QUALITY
◆ PERMANENT LABELS FOR HISTOLOGY LONG LIFE STORAGE
◆ ULTRA-FAST PRINTING
◆ AUTOMATIC CLEANING
| Dimension: | 35cmx22cmx37cm |
| Weight: | 22 KGS |
| Voltage: | AC100V-240V,50Hz-60Hz |
| Working temp Range: | -5℃-40℃ |
| Comprehensive Energy consumption: | 120W |
| Capacity of loading: | 150 Slides |
| Capacity of collection: | 100 Slides |
| Printing Speed: | >10 Slides/Minute |
Performance and technical parameters
Advanced Technology
◇Take use of new UV laser printing technology, without ribbon and ink supplies.
Durability And Reliable
◇Scan the printed QR code 100% correctly.
◇The printed content can be stored for a long time, scratch resistant, resistant to xylene, alcohol and other reagents soaking.
◇Equipped with air handling module and built-in automatic cleaning function of pipeline to protect the health of operators and reduce manual intervention.
◇Print data with power protection function, do not lose data.
◇The printed slide is pushed out from the front of the machine, and the operators on both sides of the machine can easily take it.
Stable Performance&Friendly Operation
◇The slide is pushed in and the action is pushed out after printing, and the speed is super fast. Most of the motion time is parallel with the printing time, and the action time outside printing is not more than 2 seconds.
◇The feeding frame is located on the right side of the machine, which can not only facilitate the replacement of the feeding frame, but also can directly add slides without moving the feeding frame during the work.
◇There is no limit to the number of printing fields. You can print characters, symbols, numbers, QR codes, hospital names,printing dates and other information.
◇The front width is less than 22cm, minimize the occupation of the workbench area.
◇Optional scanner.
◇Come with l1 inch tablet installation interface. Can rotate up and down around, easy to operate.
◇Single machine printing, two-dimensional code scanning printing, online printing with hospital system and other printing modes.
◇Built-in power system, reduce desktop space.
◇Printing software includes template editing interface, to be printed interface, printed interface, alarm interface, etc.
◇Can customize the name of each print field.
◇The printed content can be statistically output into a file.
◇The printing interface can directly edit the printing template.
Key Parameters
◇The highest resolution is 0.01mm, can print out 1x1mm Chinese characters.
◇Can print all kinds of paint slides, no requirements on the surface of the paint.
◇It can load 100 slides at a time.
◇Single machine can collect more than 50 pieces of printed slides.
◇Slide collection is in first-in first-out mode.
